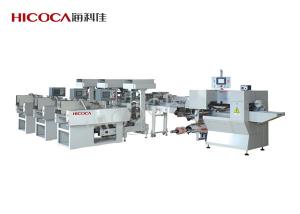

Automatic Weighing and Packing Machine for Noodles and Spaghetti
1> With Omron PLC and touch screen
2> With Magic Eyes tracing
3> With Servo motors controlling
bulk noodle packing machine one set,
conveyer line one set,
weighting machine one to four sets,
hoist engine one to four sets,
pneumatic linking bucket one to four sets
Automatically finish the packaging of noodle, Spaghetti, rice noodle and other sticking food
(180mm~260mm) with the processes of weighting, outputting, filling and sealing
| Object | noodle, Spaghetti, pasta,rice noodle |
| length of the noodle | 200g~500g(180~260mm)± 5.0mm
500g~1000g(240~260mm)± 5.0mm | |
| thickness | 0.6~1.4mm |
| width of the noodle | 0.8~3.0mm |
| packing rate | 30~60bags/min |
| weight range | 200~1000g |
| Inputting method | number input |
| variable setting | 0.1g |
| exact value | 200~500g, ± 3.0g--96%
500~1000g, ± 3.0g--96% |
| size | 6050mm× 3200mm× 1550mm(three weighing machines e.g.) |
| voltage | AC220v/50-60Hz/5000W |
I, using high-quality imported components, supporting touch screen PLC, which is easy to operate,
speed is controlled by inverter and can work synchronized production with other system, with anti-theft
device
II, transmission lines using integrated structure, long life; using optical coupling controland reducing
the chance of missing packet generated
III, the packing speed faster and more accurate
IV, saving manpower, improving productivity; Daily output is 36 to 48 tons, only need 1 person to operate
V, saving material resource. Instead of using finished packing bags, our machine use rolled film, reducing
the cost greatly
